Product Introduction

KH.UOCF301 is a radar flow meter that integrates liquid level measurement and flow calculation based on microwave technology. It consists of a radar water level sensor, a radar-based module for flow calculation, and a flow totalizer. The product features low power consumption, compact size, high reliability, and easy maintenance.

Features

• Industrial-grade design with anti-condensation, waterproof, lightning protection, and ultra-wide operating temperature range, suitable for harsh environments.

• Non-contact measurement unaffected by temperature, haze, silt, or floating objects, ensuring stable, efficient, and accurate data output.

• Combination of measurement operation and sleep mode to save energy and reduce consumption.

• Parameters can be set via Bluetooth connection, providing real-time data on water level and flow.

Application Scenarios

KH.UOCF301 is mainly used for water level monitoring and flow measurement in rivers, lakes, tidal areas, reservoir gates, groundwater pipe networks, irrigation canals, and other hydrological or water conservancy projects.

Technical Parameters

• Working voltage: 9V~24V, typical value 12V

• Working current: ≤160mA, typical value 140mA

• Working temperature: -45℃~+85℃

• Communication: RS485, baud rate 9600bps adjustable

• Distance measurement range: 0.15~40m

• Distance measurement accuracy: ±2mm

• Resolution: Water level 1mm

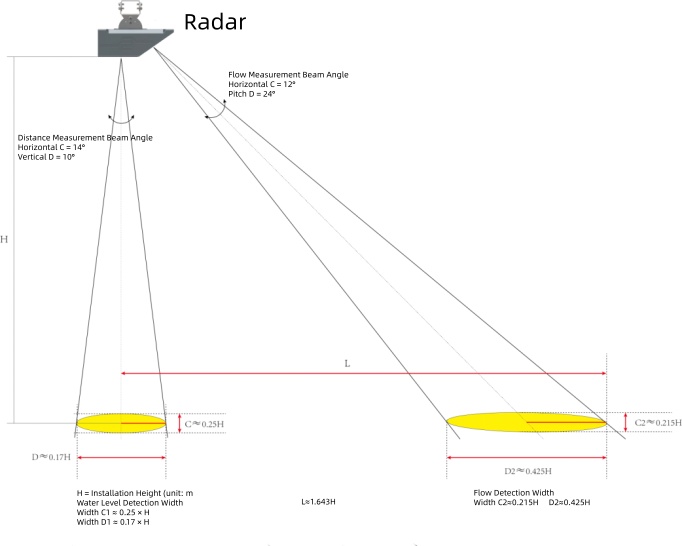

• Antenna angle: Water level 14°

• Transmitting frequency: 80GHz / 60GHz / 24GHz optional

• Flow calculation: Based on water level measurement and built-in totalizer module

• Protection level: IP68
