Product Introduction

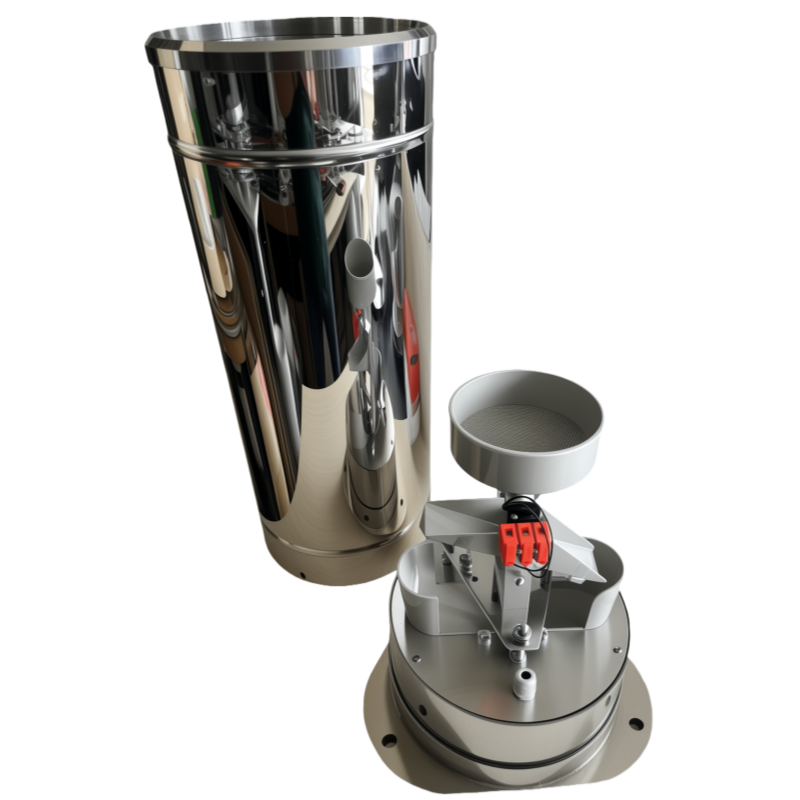

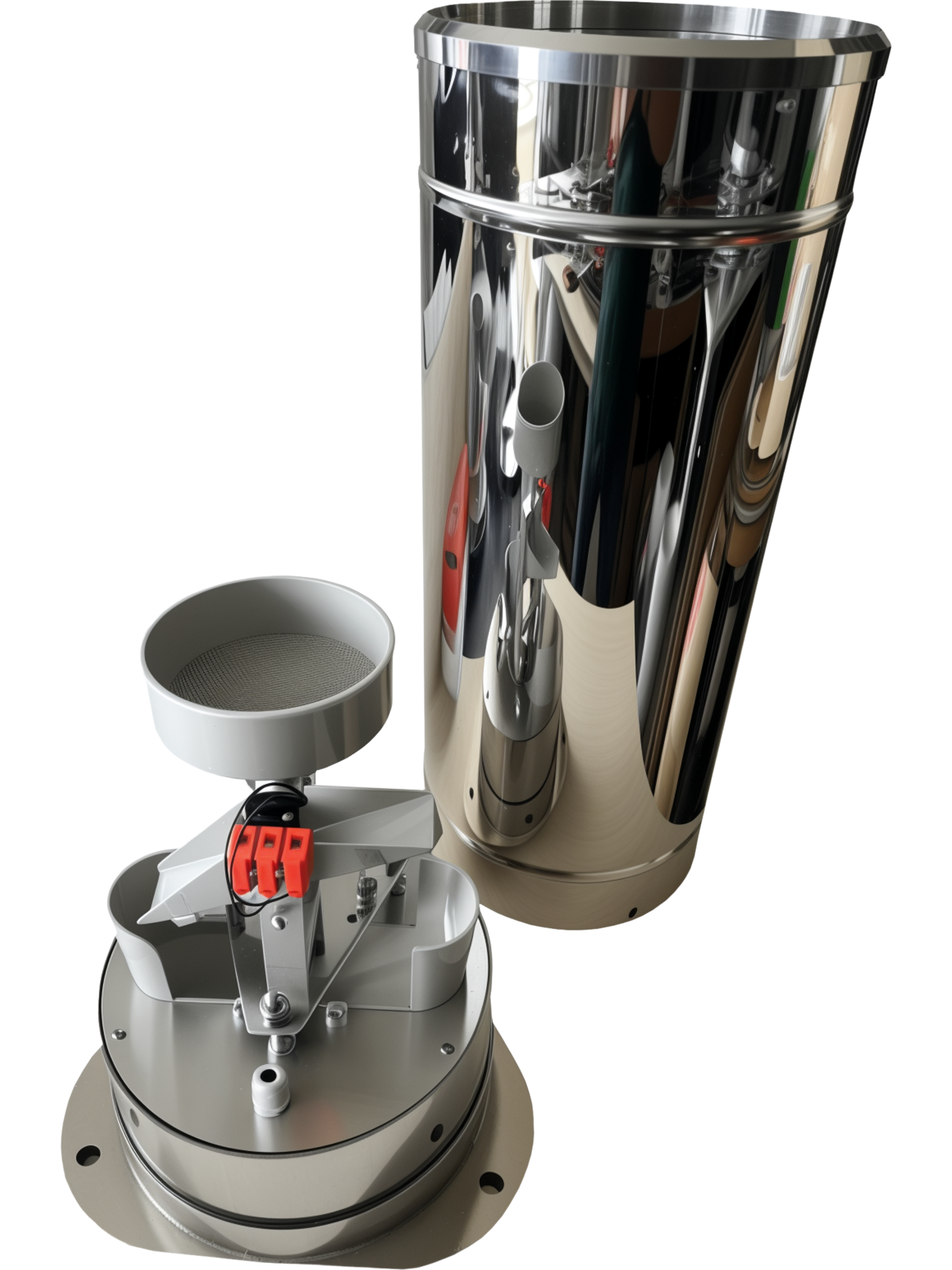

The KH.JD Series Windproof Tipping Rain Sensor is a high-precision precipitation monitoring instrument designed for coastal and island environments. Unlike traditional tipping bucket rain gauges, it features a windproof flange and labyrinth drainage system to ensure accurate rainfall measurement even under high wind and extreme conditions.
Compliant with SL61-2003 Hydrological Automatic Weather System Specification and GB/T201978.2-2014 Precipitation Observation Instrument Standard, this sensor is ideal for meteorological rainfall monitoring, hydrological stations, and environmental observation projects.

Features

• Windproof Structural Design: Specially designed flange ensures stable measurement in high wind conditions.

• High Precision Measurement: Rainfall resolution of 0.2mm or 0.5mm with an error rate ≤±4%.

• Durable Outdoor Materials: Constructed with 304 stainless steel, resistant to corrosion, UV, and extreme weather.

• Labyrinth Drainage System: Prevents water accumulation and improves measurement accuracy.

• Reliable Switching Output: Dual dry reed switch generates accurate rainfall pulse signals.

• Wide Operating Range: Operates stably from -20℃ to +60℃ with ≤95% RH humidity.

• Standards Compliance: Fully meets hydrological and meteorological monitoring requirements.

Application Scenarios

The KH.JD Series Windproof Tipping Rain Sensor is ideal for:

• Meteorological stations and hydrological monitoring

• Smart agriculture and irrigation management

• Highway and railway rainfall observation

• Coastal and island rainfall monitoring

• Urban environmental observation and flood warning systems

Technical Indicators

• Standard communication: Pulse switch signal

• Switch capacity: DC ≤12V, I ≤500mA

• Body material: 304 stainless steel

• Operating temperature: −20℃ ~ +60℃

• Working humidity: ≤95% RH (at 40℃)

• Base structure: Windproof flange

• Drainage method: Labyrinth drainage

Parameters

• Rainfall measurement resolution: 0.2mm / 0.5mm

• Precipitation intensity: ≤4mm/min, operational up to 8mm/min

• Measurement error: ≤±4% (rainfall intensity 2mm/min)

• Water inlet diameter: Φ200 ±0.6 mm

• Body dimensions: Diameter 200mm × Height 550mm × Thickness 1mm

Why Choose KH.JD Series Windproof Rain Sensor

• Windproof flange and labyrinth drainage system ensure accurate measurement even in extreme weather.

• High-precision tipping bucket design with minimal maintenance requirements.

• Durable 304 stainless steel construction resists corrosion and UV exposure for long-term outdoor use.

• Dual dry reed switch provides reliable rainfall pulse signals for automatic data collection.

• Ideal for hydrology, meteorology, smart agriculture, and urban flood monitoring applications.
