Product Introduction

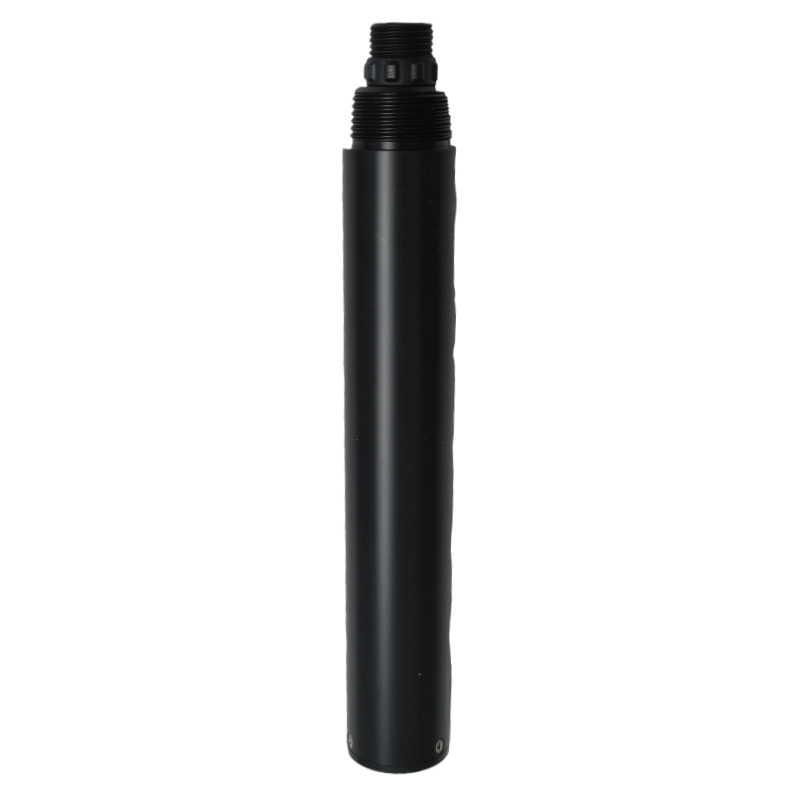

The KH.SZ-ZS Turbidity Sensor is a high-precision water quality monitoring instrument based on the light scattering principle. The sensor emits a light beam into the water sample, and suspended particles scatter the light. The detector positioned at 90 degrees to the incident light captures the scattered light, which is then converted to turbidity values through photoelectric conversion, signal processing, and software calculation. The sensor delivers real-time, stable turbidity measurements and supports RS-485 Modbus RTU output for easy integration with PLC, DCS, SCADA, or other industrial monitoring systems.

Key Features

• Light scattering measurement: Accurate turbidity detection for water samples with suspended particles.
• Wide measurement range: 0–4000 NTU, adjustable to suit various water quality conditions.
• High precision and repeatability: Accuracy ±5%, repeatability ≤5%.
• Fast response and stable readings: Zero drift ±3%, range drift ±3%.
• Durable and waterproof: IP68-rated, submersible up to 60 meters.
• Voltage stability: ±3% variation in reading ensures consistent monitoring.
• Easy integration: RS-485 Modbus RTU output compatible with industrial monitoring platforms.
• Low maintenance: Reliable long-term operation with minimal calibration requirements.

Application Scenarios

• Environmental water monitoring in rivers, lakes, and reservoirs
• Wastewater treatment and industrial effluent monitoring
• Aquaculture and fish farming turbidity control
• Laboratory, tanks, and pipeline water quality analysis
• Drinking water treatment and filtration systems

Technical Specifications
