Product Introduction

The KH.CQX-5 Ultrasonic All-in-One Weather Sensor is an advanced 5-in-1 meteorological monitoring device designed for automatic weather stations, smart agriculture, environmental observation, and IoT-based weather monitoring systems.

By integrating wind speed, wind direction, air temperature, relative humidity, and atmospheric pressure measurement into a single compact sensor, the KH.CQX-5 provides comprehensive real-time weather data with simplified installation and reduced system complexity.

Using ultrasonic measurement technology, the sensor eliminates mechanical moving parts and provides stable, maintenance-free operation compared with traditional mechanical weather sensors.

With RS485 Modbus RTU communication, the KH.CQX-5 can be seamlessly integrated with weather stations, telemetry systems, SCADA platforms, and IoT environmental monitoring networks.

Its durable ASA engineering plastic housing ensures reliable long-term outdoor operation in agricultural fields, environmental observation sites, and meteorological monitoring stations.

How It Works

The KH.CQX-5 uses ultrasonic sensing technology to measure wind conditions without rotating mechanical components.

The integrated electronic sensing modules simultaneously collect:

• Wind speed
• Wind direction
• Temperature
• Relative humidity
• Atmospheric pressure

The collected data is processed internally and transmitted through digital communication interfaces for remote monitoring and analysis.

This integrated design provides:

• Multi-parameter weather monitoring
• Maintenance-free operation
• Fast real-time data acquisition
• Simplified weather station installation

Key Features

5-in-1 Integrated Weather Monitoring

Combines five essential meteorological parameters in one compact device:

• Wind speed
• Wind direction
• Temperature
• Humidity
• Atmospheric pressure

Ultrasonic Wind Measurement Technology

The ultrasonic sensing principle eliminates:

• Mechanical wear
• Moving component failures
• Frequent maintenance requirements

providing stable long-term weather monitoring performance.

High Precision Meteorological Data

Provides reliable environmental measurements for:

• Weather observation
• Agricultural climate monitoring
• Environmental research

Maintenance-Free Outdoor Operation

The non-mechanical structure reduces maintenance requirements and ensures reliable operation in long-term deployments.

Durable Weatherproof Housing

The ASA engineering plastic enclosure provides resistance against:

• UV exposure
• Rain
• Humidity
• Outdoor environmental changes

RS485 Modbus RTU Communication

Supports integration with:

• Automatic weather stations
• IoT telemetry systems
• SCADA platforms
• Environmental monitoring networks

Wireless Monitoring Options

Optional wireless communication modules enable remote weather data transmission for distributed monitoring applications.

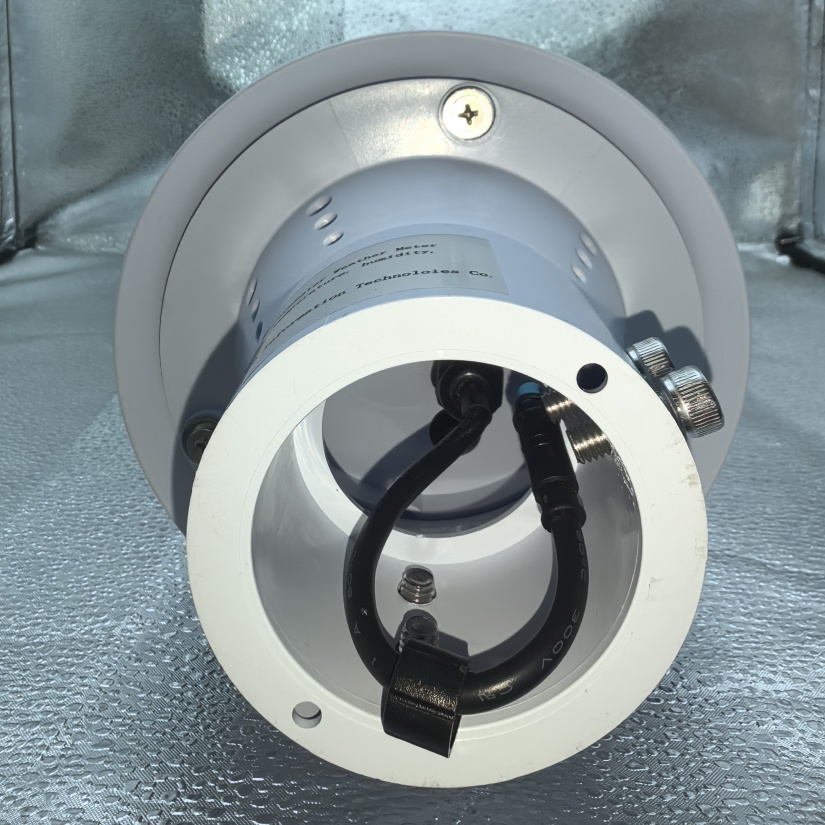

Easy Installation and Deployment

The compact snap-on structure allows quick installation on:

• Weather station poles
• Agricultural monitoring stations
• Environmental observation towers

Application Scenarios

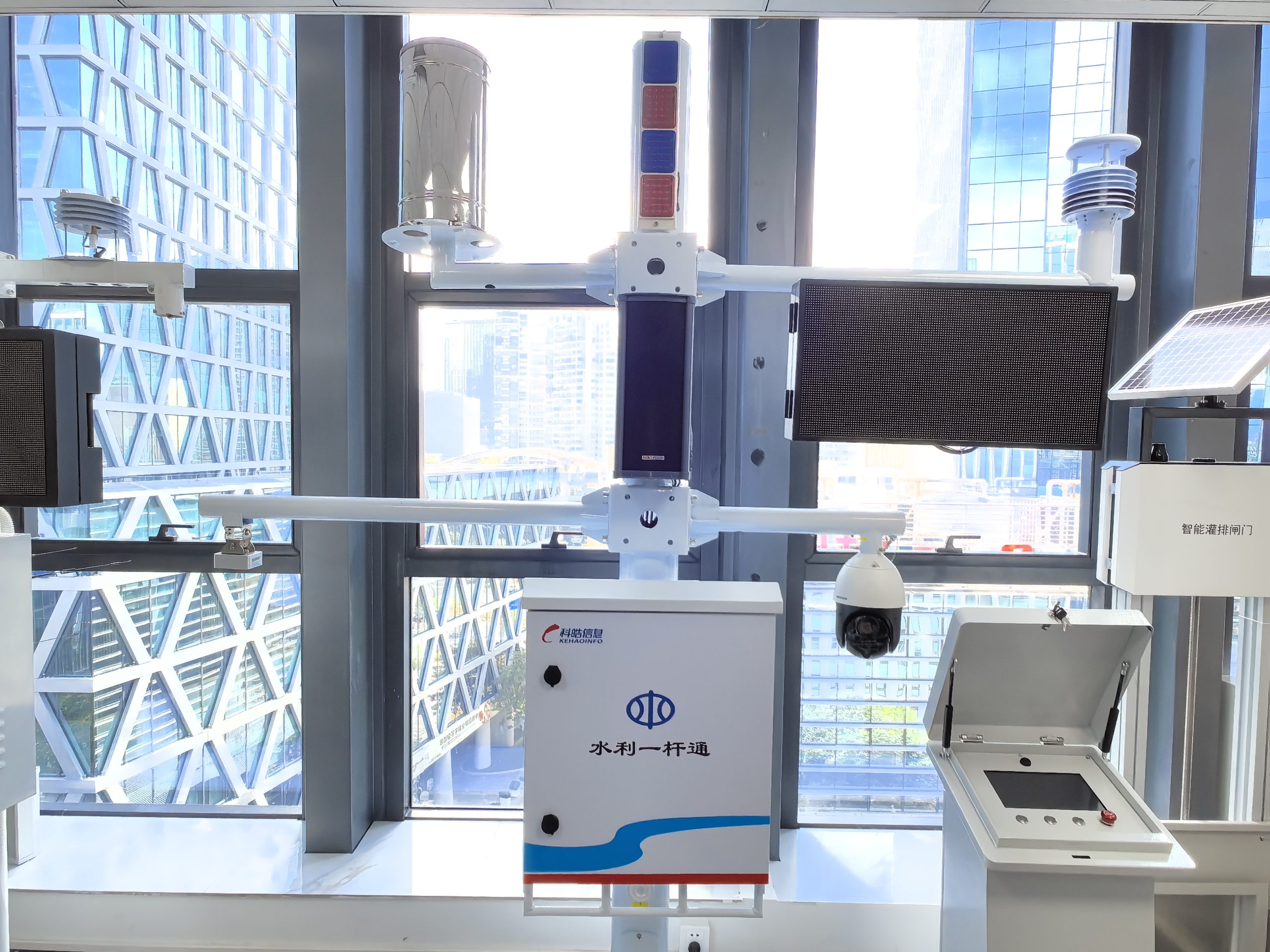

Automatic Weather Stations

Provides complete meteorological data collection for:

• Weather observation
• Climate monitoring
• Environmental research

Smart Agriculture and Precision Farming

Supports:

• Crop climate monitoring
• Greenhouse environmental management
• Irrigation planning
• Precision agriculture systems

Urban Environmental Monitoring

Used for:

• Smart city microclimate monitoring
• Urban environmental observation
• IoT weather networks

Renewable Energy Site Assessment

Provides meteorological data for:

• Wind energy evaluation
• Solar energy planning
• Environmental condition analysis

Related Weather Monitoring Sensors

The KH.CQX-5 can be integrated with KEHAO weather station solutions together with:

• Rainfall sensors
• UV radiation sensors
• Solar radiation sensors
• Soil monitoring sensors
• Telemetry stations
